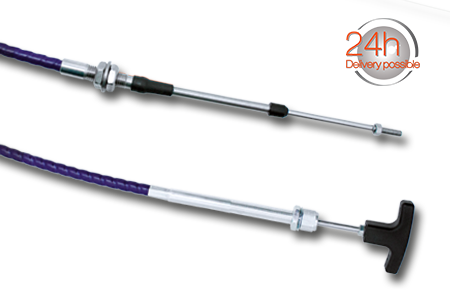

Express Push/Pull cable
-
-
with T-Grip 284-V-NL/T05M-3, without T-Grip 284-V-T05M/T05M-3
Product overview
RINGSPANN RCS Express Push/Pull cable have been developed for demanding industrial applications where precise, reliable and flexible power transmission is required. Specially optimised internal and external components ensure low slip-stick effect, high robustness and a long service life.
Features
- Advanced Bowden cable for push and pull forces
- Extremely smooth-running inner member thanks to the PTFE coating
- Small bending radii (min. bending radius 51 mm)
- Low-friction lifetime lubrication for consistent performance
- Stainless steel end parts for a long service life
- High temperature resistance for use at temperatures up to 90° C
Webshop:
| Product name | Article number |
Weight [kg] |
L [cm] | Delivery time* |
For customers in Germany Price/piece in € for orders of at least |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 250 | 500 | |||||||
| 284-V-NL/T05M-3-0100 | 4582-102931-S30100 | 0,27 | 100 |
|
90,70 | 86,17 | 78,91 | 72,56 | 68,93 | 66,21 | 62,58 | 58,96 | 56,23 | 54,42 | ||
| 284-V-NL/T05M-3-0150 | 4582-102931-S30150 | 0,36 | 150 |
|
97,10 | 92,25 | 84,48 | 77,68 | 73,80 | 70,88 | 67,00 | 63,12 | 60,20 | 58,26 | ||
| 284-V-NL/T05M-3-0200 | 4582-102931-S30200 | 0,45 | 200 |
|
105,70 | 100,42 | 91,96 | 84,56 | 80,33 | 77,16 | 72,93 | 68,71 | 65,53 | 63,42 | ||
| 284-V-NL/T05M-3-0300 | 4582-102931-S30300 | 0,63 | 300 |
|
118,80 | 112,86 | 103,36 | 95,04 | 90,29 | 86,72 | 81,97 | 77,22 | 73,66 | 71,28 | ||
| 284-V-T05M/T05M-3-0100 | 4582-193931-S30100 | 0,29 | 100 |
|
88,50 | 84,08 | 77,00 | 70,80 | 67,26 | 64,61 | 61,07 | 57,53 | 54,87 | 53,10 | ||
| 284-V-T05M/T05M-3-0150 | 4582-193931-S30150 | 0,38 | 150 |
|
95,00 | 90,25 | 82,65 | 76,00 | 72,20 | 69,35 | 65,55 | 61,75 | 58,90 | 57,00 | ||
| 284-V-T05M/T05M-3-0200 | 4582-193931-S30200 | 0,47 | 200 |
|
102,60 | 97,47 | 89,26 | 82,08 | 77,98 | 74,90 | 70,79 | 66,69 | 63,61 | 61,56 | ||
| 284-V-T05M/T05M-3-0300 | 4582-193931-S30300 | 0,65 | 300 |
|
115,50 | 109,73 | 100,49 | 92,40 | 87,78 | 84,32 | 79,70 | 75,08 | 71,61 | 69,30 | ||
| 284-V-T05M/T05M-3-0400 | 4582-193931-S30400 | 0,83 | 400 |
|
129,60 | 123,12 | 112,75 | 103,68 | 98,50 | 94,61 | 89,42 | 84,24 | 80,35 | 77,76 | ||
| * Delivery times ex works in business days |
